VALQUA

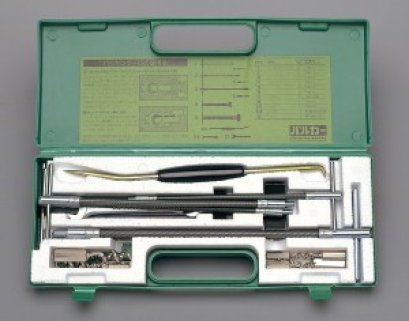

VALQUA - PACKING TOOL
VALQUA Packing Tool is an indispensable special tool that allows easy and accurate removal of packing to improve work efficiency.
Sold 0 items
VALQUA - GASKET CUTTER
This is a set of convenient tools to easily cut out flange gaskets at a construction site or for assembly work. Cutting range : Minimum diameter : 50 mm., Maximum diameter : 540mm
Sold 0 items

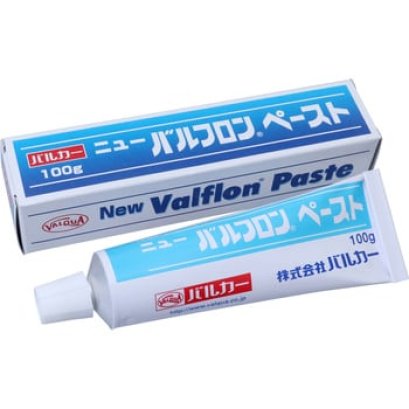

VALQUA - VALFLON PASTE Model. PSVO
Applicable fluid : When highly corrosive fluids such as strong acids and alkalis or halogens and when oxidizing fluid such as oxygen are required.
Sold 0 items
VALQUA - GASKET PASTE Model VALQUA No. 6M
Gasket paste's applicable fluid : Hydrocarbon based fluids such as petroleum based oil, oil gas, solvent, solvent vapor, animal & vegetable oil, LNG and general gases, where white paste is specially required.
Sold 0 items
VALQUA - ARAMID / INORGANIC FIBER COIL Packing Model VALQUA No. 8133
Coil packing made of blended yarn of aramid fiber and of artificial inorganic fiber treated with PTFE dispersion, braided into a square cross section, then finished with PTFE dispersion. (These can be used as shaft seals of general use valve for handling water based and oil based fluids. )
Sold 0 items
VALQUA - VF BRAID Reinforced by metal wire Model VALQUA No. VFX-15
An expanded graphite braided packing that can be use used on its own under high temperatures and high pressures by reinforcing the expanded graphite yarn (thread) using a thin metallic wire to improve pressure resistance (Highly excellent in heat resistance, chemicals resistance and radiation resistance).
Sold 0 items
VALQUA - CARBON FILER COIL Packing Model VALQUA No.6345
Coil packing made of high grade carbon fiber yarns, processed with graphite, then braided into a square cross section and finished with graphite.
Sold 0 items
VALQUA - TRYPACK Double Layer Model VALQUA 3645
Metal C-rings are made of a coil spring as an elastic element, which is covered with a thin metallic sheet such as aluminum sheet. Used for semiconductor-related facilities, nuclear power-related facilities, electronic industry, laser equipment, joints, valves, injection molding machines, etc.
Sold 0 items
VALQUA - Ring Joint Gasket Model VALQUA 550-ZS
Ring Joint Gasket is made of single metal to be used for pipe flanges in the lines handling high temperature & high pressure steam, as well as for ring joint flanges of valve bonnets. (Applicable Fluid: Sea water, Hot water, Weak alkali, Strong alkali, etc.)
Sold 0 items
VALQUA - KAMM PROFILE Gasket Model VALQUA 6540H series
Metal Sheet Gasket, grooved concentrically with special saw-tooth cross section, processed into a specified flat shape, then provided with VALQUAFOIL sheet bonded to both upper and lower surfaces for improved sealing performance. (Applicable Fluid: Hot Water, Alcohol, Inflammable gas, etc.)
Sold 0 items
VALQUA - METAL JACKETED Gasket Model VALQUA N520-C
Cut surface on the inner diameter side of sheet gaskets made of Compressed Fiber Sheet and the like is covered with a thin metallic sheet (grommet-finished), which contributes to permeation leakage prevention and erosion prevention. Can cut into any forms. As for dimensions, products with a maximum diameter of about 3,000 mm can be manufactured, while still larger ones may also be fabricated at site upon request. No.520-C, limiting dimensions depend on core materials used. (Non asbestos)
Sold 0 items

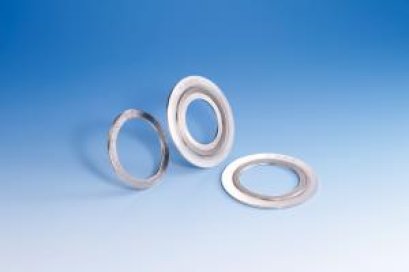

VALQUA - METALLIC, SEMI-METALLIC Gasket Model VALQUA M596L
Spiral Wound Gaskets made of expanded graphite filler, and clothless mica filler made by special manufacturing process has excellent seal ability and remarkably improved heat resistance because of anti-oxidation effect to expanded graphite by mica filler. Temperature limit up to 750℃
Sold 0 items

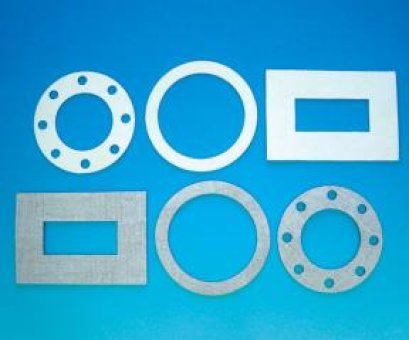

VALQUA - TEX Sheet Gasket Model VALQUA N314
This type of gasket is made from a rubberized metal wire-reinforced ceramic fiber fabric finished to the required flat shape. VALQUATEX are used for flanges of equipment manhole or exhaust gas ducts. Upon request, products with surface treatment using graphite are available. (It facilitates peeling off gaskets when disassembling joints.
Sold 0 items

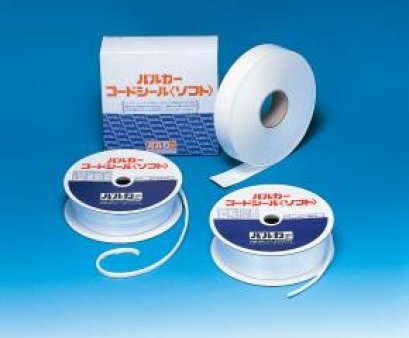

VALQUA - CORD SEAL (Oval Type) Model VALQUA No. 7GS66A
Cord Seal is a marshmallow shaped free-size sealing material, which has been modified to be flexible and rich in toughness, while maintaining the PTFE's excellent chemicals and heat resistance. It's a String shaped products with an oval cross section [string type] and adhesive to improve workability.
Sold 0 items

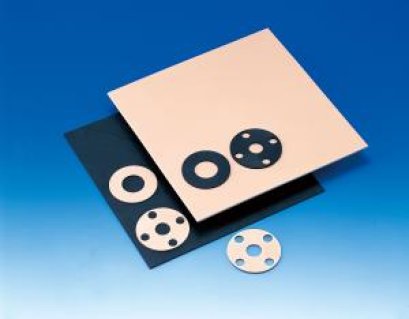

VALQUA - ปะเก็นแผ่นเทฟล่อน รุ่น วัลคัว 7020
Provided with heat resistance, chemicals resistance, and anti-cold flow property, they are best suited for lines handling various chemicals (high concentrated hot sulfuric acid and hot nitric acid, etc).
Sold 0 items
VALQUA - Compressed fiber sheet gasket Model VALQUA No. 6500
Suitable to be used as Non-asbestos gaskets for pipe flanges and equipment in various industries including oil refineries, chemical industries and shipyards.
Sold 0 items
VALQUA - PTFE sheet gasket Model VALQUA No. GF300
A high-performance non-asbestos sheet gasket ideal for utility lines using water vapor, oil and weak acid.
Sold 0 items
